LASER SINTERING AND MILLING WORKING TOGETHER (Moldmaking Technology)

St. Paul, MN (February 20, 2018) —— A hybrid manufacturing process offers mold builders an alternative method for making cores and cavities with time and cost savings and increased consistency. (Greg Langenhorst, reprint from Moldmaking Technology)

In moldmaking, manufacturers are constantly searching for ways to increase productivity by cutting production time and costs. Today, a hybrid process exists that allows additive machining and milling in the same setup to address those two challenges.

Working Together

Laser sintering and milling can be performed on one machine, providing additive machining in addition to more traditional, subtractive milling. Traditional machines start with a piece of steel and mill, drill and grind it to get to the finished piece. However, the hybrid process starts with nothing but a base plate and a bucket of metal powder.

The machine pours metal powder into a tray, then squeezes a layer of powder across the table and the base plate, filling in the low spots so the powder layer is level. This leaves a smooth, flat surface on the base plate. The first layer of powder is 50 microns thick, 0.002 inch (0.05 mm) above the base plate. A 400-watt YB fiber laser swings above the table, following the design determined by the 3D software program, and melts and welds the powder to the base plate.

The laser beam then comes out at a single, fixed point. A galvanometric mirror system focuses the beam, moving the laser heating point to where it needs to hit the base plate according to the predetermined design. Each layer is sintered 0.002 inch at a time, building up material by adding layer upon layer. After 20 layers have been welded together, the milling process begins. This next step is what differentiates the laser sintering/milling hybrid process from existing additive machining processes.

Because the freshest 10 layers of metal need time to cool, the layers are sintered in succession. The cutters begin milling the first 10 layers, while the second 10 layers are cooling from the sintering process. The milling process is always one set of layers behind the laser sintering process.

As the part increases in height, the table lowers, making up for the difference. The two processes work in tandem, always at the same height.

The machine table allows for pieces as large as 10 by 10 inches wide at the base and as tall as 7 inches. The base plate can be incorporated into the actual workpiece, or it can simply be the foundation upon which the piece will sit. For example, when machining a core or cavity, the base plate may form the bottom portion of the part, with pre-drilled holes for water cooling lines.

Controlling Density

Another primary advantage of this hybrid process is that it enables manufacturers to control the sintered density of the material. A typical solid is 99.5 percent density, however, a porous area can be reduced to 90 percent density. With the laser sintering process, manufacturers can create little voids in the component, which speeds up the sintering process. For a larger piece, an operator can create an outside skin layer sintered at 99.5 percent with an inner support structure sintered at 90 percent. This creates a more porous part for weight savings on an otherwise solid exterior. Even at 90 percent density, the piece is solid enough that the pores are not visible on the surface.

There are many advantages to changing the sintered area’s density that reach beyond time-saving.

A basic mold has a top half and a bottom half. When closed, it’s airtight. Water runs through the mold to cool the hot plastic that is injected into it, but during the fill the air in the mold needs a place to escape. Oftentimes, the air tries to rush past the incoming plastic, and this creates burn marks on the plastic. In a typical mold application, the operator needs to drill a vent point in the mold. Once air escapes through this vent point, the hole is filled with a little piece of plastic, leaving a small divot in the part. The laser sintering process can create a porous conduit in the mold that functions like an exhaust pipe to allow that air to vent out but does not leave any noticeable marks.

Not only does this porous machining capability create tubes to let out the air, but it also allows pressurized molding, or gas assist molding, of parts with large, curved, ribbed surfaces. With traditional machining, some smooth, curved part surfaces will show shadows of the ribs on the backside due to shrinkage on the part surface. That can be eliminated by pressurizing the porous areas with nitrogen before the mold cools completely. This pushes the plastic up against the cavity surface, eliminating shrinkage from the ribs on the backside.

Cooling Conformity

Another major advantage of controlling part density is the ability to build molds with internal channels for the coolant rather than machining them out post-development.

When injecting plastic, ideally you want the entire part to cool at the same rate. Obviously, when subtractive machining a core or a cavity, the only way to create holes for a cooling system is to drill them—and it is impossible to drill a curved hole. Ultimately, you have to drill in from the mold’s back side or sides to calculated depths so the holes intersect. Then all the access points have to be plugged up with set screws to allow the fluid to flow in the proper direction.

The powder sintering process enables you to design your cooling channels an optimum distance from the actual surface of the core or cavity. You can then create a hollow tube within the part that loops back and forth, getting the water exactly where it needs to be to cool any hot spots. This conformal cooling is faster and results in less movement, shrinkage and warping of the finished plastic part.

For example, consider a mold for a digital camera case. It has fairly thin walls with a large opening, making it very fragile. Providing cooling in the needed areas to avoid wall shrinkage and warpage can be a challenge. A laser sintering/milling hybrid process can create fairly flat-shaped pipes (compared to the round ones that come from drilling) to fit within this thin mold. The cooling channels don’t necessarily have to be round; they can be virtually any shape. In this case, the additive machining process is not only faster, but it allows for more flexibility than is otherwise available.

Finishing Touches

The laser sintering/milling hybrid process can be ideal for manufacturing molds. It can make use of four different materials: hot rolled steel, maraging steel (H13 equivalent that can be heat-treated to 52 Rockwell after it comes out of the machine), 630 stainless steel and 316L stainless steel.

When using laser sintering for cores, many manufacturers receive the part, send it out for heat treatment, bring it back for finish machining and milling, then put it on a sinker EDM to smooth out any ribbing. But how is accuracy affected when you heat-treat a part that is finish-milled out of the machine?

The laser sintering/milling process calculates a 1-percent shrinkage factor during heat treatment. This shrinkage factor then is programmed into the model size to which the machine is being told to finish so that after heat treatment, the part is the correct size.

Quickening the Pace

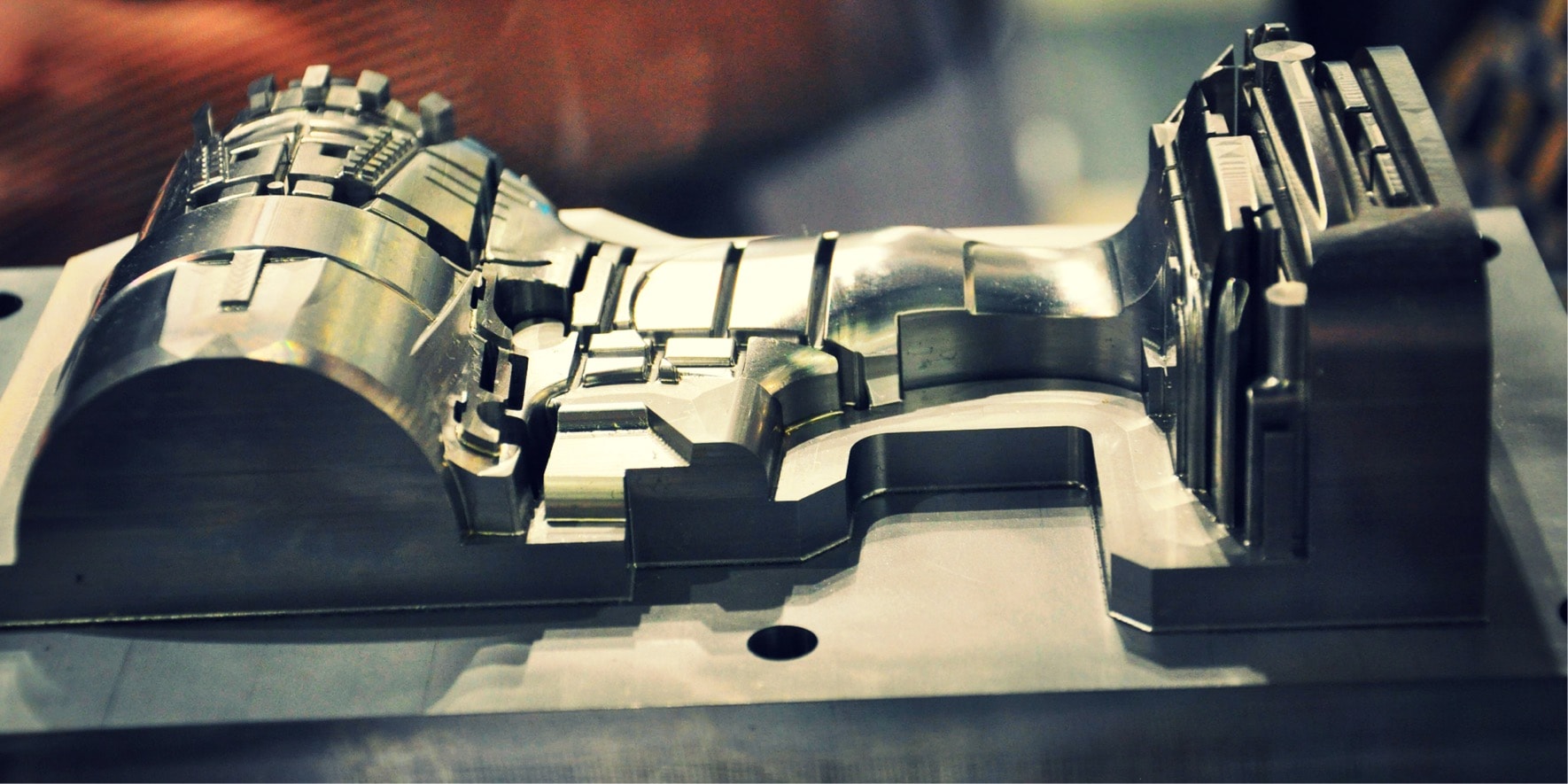

In actual mold examples, such as a mold core for a drill case part, this hybrid process has shown a 65 percent reduction in manufacturing time and a 50 percent cost reduction when compared to traditional milling. Such a mold took 11 days to machine with the hybrid process, and once the program was prepared, the machine could run unattended 24/7. Making the same mold conventionally would require 25 individual pieces and take about 30 to 40 days to machine, depending on the use of copper or graphite electrodes.

Subtractive machining requires the creation of programs for the mills and electrodes to do rib and cavity work. Not to mention, traditionally made molds have increased mold cycle times. For example, when the drill case was built using conventional processes, the mold injection time was 23 seconds and cooling time was 30 seconds. However, with conformal cooling channels, the fill time remains the same, but the cooling time is reduced to 15 seconds. So a 53-second cycle is cut down to 38 seconds, just under a 30-percent improvement.

What’s more, traditional machining would cost roughly $40,000, whereas the hybrid process cost about $20,000, factoring in no electrode requirements and a one-piece core. So the laser sintering process was not only faster, but it cut the cost in half.

The laser sintering/milling hybrid process’ overall time and cost savings and increased consistency make it an alternative mold-building process worth investigating. (Greg Langenhorst, reprint from Moldmaking Technology)

Matsuura Machinery USA, Inc. recently announced the Grand Opening of the Matsuura LUMEX Laboratory and demonstration facility within the existing corporate headquarters in St. Paul, MN, March 22-23, 2018.

The Matsuura LUMEX Center of Excellence is complete with the installation of four Matsuura LUMEX Avance machines: three Matsuura LUMEX Avance-25 and one Matsuura LUMEX Avance-60.  Additional Matsuura LUMEX Avance machine installations are scheduled for 2018.

The St. Paul, MN facility joins the three other Matsuura LUMEX Centers of Excellence locations in Japan, Germany and the UK.

The Matsuura LUMEX Series, manufactured for more than ten years, is now offered in North America with sales and technical support provided by Matsuura Machinery USA, Inc.

The Matsuura LUMEX Series, a powder bed metal AM platform with machining capability.  The Matsuura LUMEX Series combines selective laser sintering (SLS) along with high speed milling (HSM) commonly called Hybrid AM.

Matsuura’s unique combination of technology platforms enables the production of parts and molds in a method that has never been possible nor imagined.

“Matsuura’s cutting-edge technology is a transformative in today’s world of 3D Metal Additive Manufacturing.  With our combination of best-in-class CNC Milling and high speed Direct Laser Melting, Matsuura has fundamentally revolutionized the AM marketplace,” said Tom Houle, Director, LUMEX, NA, Matsuura Machinery USA, Inc.

“Often referred to as a “one machine, one process” cutting solution, the Matsuura LUMEX Series permits production of the most complex and challenging parts and molds through total manufacturing by digital engineering using 3D data,” Houle said.

“This process produces remarkable accuracy as metal powders are melted and sintered via laser while surfaces are precisely milled at high speeds. The Matsuura LUMEX Series possesses both high-speed milling plus laser sintering capability. Engineers are free to conceive innovative ideas and revolutionizing conventional manufacturing,” Houle added.

“The use of AM technology and hybrid AM, requires the part/mold designer to re-evaluate all past practices especially as they relate to utilizing creative geometries, such as hollow structures, that were not possible before. Variable density material properties help with weight reduction and in injection mold design for gas venting inserts,” Houle explained.

The Matsuura LUMEX Avance-25 metal laser sintering hybrid milling machine relies on one-machine, one-process manufacturing of complex molds and parts by fusing metal laser sintering (3D SLS) technology with high speed milling technology. The machine enables production of complicated parts and molds through total manufacturing by digital engineering, using 3D data.

The Matsuura LUMEX Avance-25 is capable of processing parts and molds up to 256 mm x 256 mm x 185 mm with an option allowing processing of 256 mm × 256 mm × 300 mm. The Matsuura LUMEX Avance-25 serves predominantly the high value, high accuracy mold and die market. Dies and molds with very complex geometries can be fabricated in one piece with high accuracy, shortening lead time and reducing manufacturing costs to a half or even a third of conventional methods.

The Matsuura LUMEX Avance-25 achieves the highest accuracy in part fabrication since metal powders are melted and sintered via laser, while surfaces are precisely milled at high speeds. 3D cooling channels can be incorporated into molds in the single setup, thereby increasing cooling efficiency and enabling high-cycle injection molding with better than ever quality and precision, reducing costs and improving efficiency.

Differentiated original parts and mold production with internal structures, thus far considered impossible, are achievable on the Matsuura LUMEX Avance-25. The Matsuura LUMEX metal laser sintering hybrid milling machine is capable of quick turn production of custom parts and molds, whether prototypes or small production run parts and molds.

“Rising interest in the Matsuura LUMEX products from aerospace and automobile industries searching for a machine capable of creating larger, high value-added parts prompted Matsuura to develop the Matsuura LUMEX Avance-60,” Houle explained.

The Matsuura LUMEX Avance-60 can process parts and molds up to 600 mm x 600 mm x 500 mm. The machine is also outfitted with a high power 1kW fiber laser that significantly reduces sintering time.

The Matsuura LUMEX Avance-60 provides an increased speed of powder distribution to the table top surface along with a fully integrated automatic powder supply, collection and recycle system. Metal powder materials are distributed automatically into the sintering chamber without operator contact, eliminating powder dispersion in the work area and preserving a safe environment. Unused powder is automatically collected, sieved and recycled.

“Learn more about the Matsuura LUMEX Series and engage your imagination in what you can achieve,” Houle said.

Also see the Matsuura LUMEX Series at the following events in 2018:

  • AMUG 2018 featuring MATSUURA LUMEX: St. Louis Union Station, St. Louis, MO, April 8 – 12, 2018

  • Rapid + tct 2018 featuring MATSUURA LUMEX: Fort Worth Convention Center, Fort Worth, TX, April 23-26, 2018

  • AMERIMOLD 2018 featuring MATSUURA LUMEX: Novi, MI, June 13-14, 2018

  • IMTS 2018 featuring MATSUURA USA: McCormick Place, Chicago, IL, September 10-15, 2018

  • FABTECH 2018 featuring MATSUURA LUMEX: Atlanta, GA, November 6-8, 2018

Matsuura Machinery USA, Inc., located in St. Paul, MN is the U.S. subsidiary of Matsuura Machinery Corporation in Japan. Since 1935, Matsuura has been the forerunner in designing innovative technology and manufacturing solutions to a variety of industries around the globe. Matsuura Machinery USA, Inc. delivers unmatched excellence in 5-axis, vertical, horizontal, linear motor, multi-tasking CNC machine tools and machines with a powder bed metal AM platform with machining capability. Matsuura Machinery USA, Inc. provides the service, applications and technical field support that have always been the Matsuura standard for business. For more information on Matsuura LUMEX products, contact: [email protected] or visit: www.matsuurausa.com.
