High Precision, Simultaneous Productivity
The MAM72-52V, a high speed, large capacity 5-axis vertical machining center, is designed to handle a greater workpiece size than our existing models, offer faster response times to market and deliver even higher productivity to meet customers’ business requirements for faster cycle times and cost down performance.
Technical Specs Print Specs
| Industries | Aerospace and Defense, Automotive and High Performance |
|---|---|
| Max Work Size mm (in) | Standard | Ø520×H400 | (Ø20.47×H15.75) |
| Spindle Speed RPM | 15,000:BT40 Standard | 12,000:BT 40 | 20,000:BT40 |
| Travel (x/y/z) mm (in) | 1,010/540/610 | (39.76/21.25/24.01) |
| Loading Capacity kg (lb) | 300 (660) | Standard |
| Travel (a/c) ° | +30～-125/360 |
| Rapid Traverse (x/y/z) m/min (in/min) | 60/60/60 (2,362.2/2,362.2/2,362.2) |
| Rapid Traverse (a/c) min-1 | 50/100 |
| Tool Taper | #40 – CAT/BT STD (HSK-A63 OPT) |
| Number of Tools | 330 BT40 Standard | 370/410/450/490/530 BT40 |

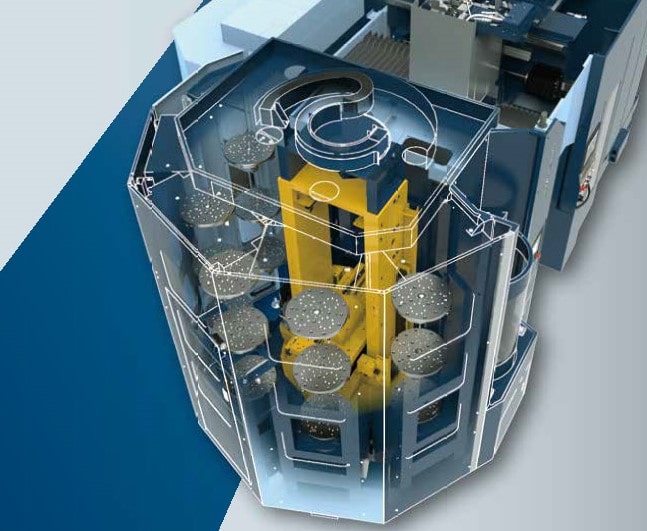

| Number of Pallets | 15 Standard |
| NC System | Matsuura G-Tech 31i |
| Working Surface mm (in) | Ø400 (Ø15.74) Standard |
| Rapid Traverse (b/c) min-1 | 50/100 |
