High Speed, Compact
The LX-160 High Grade Vertical Linear Motor Machine is the ultimate 5-axis vertical machine equipped with fast and accurate linear motors in all axes for machining with high-speed and high-precision. The Matsuura LX-160 is ideal for the medical and aerospace industries with exceptionally fast cutting and micro tools up to 46,000 RPM.
Technical Specs Print Specs
| Industries | Automotive and High Performance, Die / Mold, Medical |
|---|---|
| Max Work Size mm (in) | Standard | Ø160×H230< | (Ø6.29×H9.05) | [with PC] | Ø160×H200 | (Ø6.29×H7.87) | *Bullet shape |
| Spindle Speed RPM | 46,000:BT30 Standard | 46,000:HSK-E40 |
| Travel (x/y/z) mm (in) | 500/250/300 | (19.68/9.84/11.81) |
| Loading Capacity kg (lb) | 20 (44) |
| Rapid Traverse (x/y/z) m/min (in/min) | 90 (3,543.3) |
| Tool Taper | BT #30 STD (HSK-E40 OPT) |
| Number of Tools | 10:BT30 Standard | 30/50:BT30 | 128/188/248/308 338:BT30 | 10:HSK-E40 Standard | 30/50:HSK-E40 | 128/188/248/308 338:HSK-E40 |
| Number of Pallets | Fixed Table | 2 | 42:Linear pallet system | :Linear pallet system |
| NC System | Matsuura G-Tech 31i |
| Working Surface mm (in) | Ø100 (Ø3.93) Standard | Ø112(Ø4.40) [pc] |
| Travel (b/c) ° | -125～+125/360 |
| Rapid Traverse (b/c) min-1 | 100/200 |

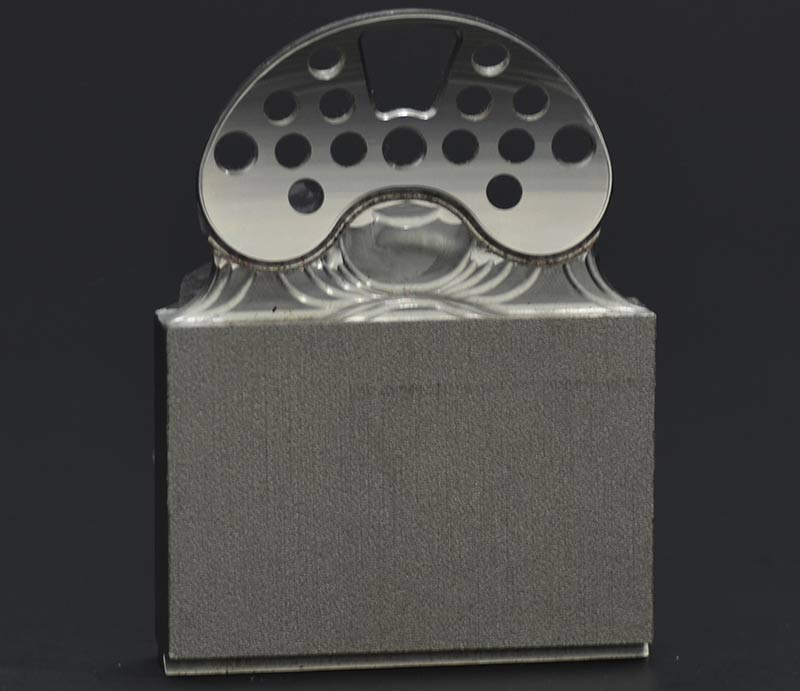

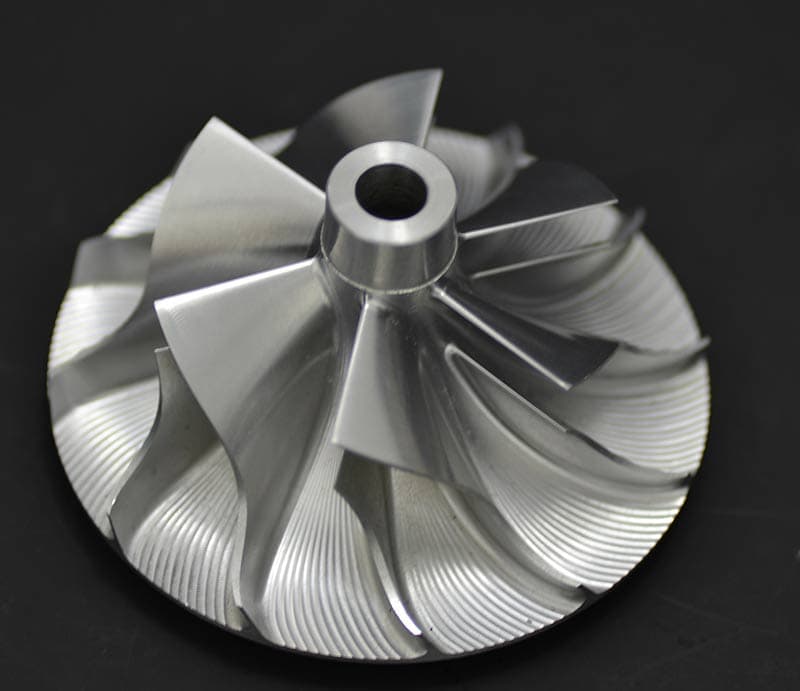

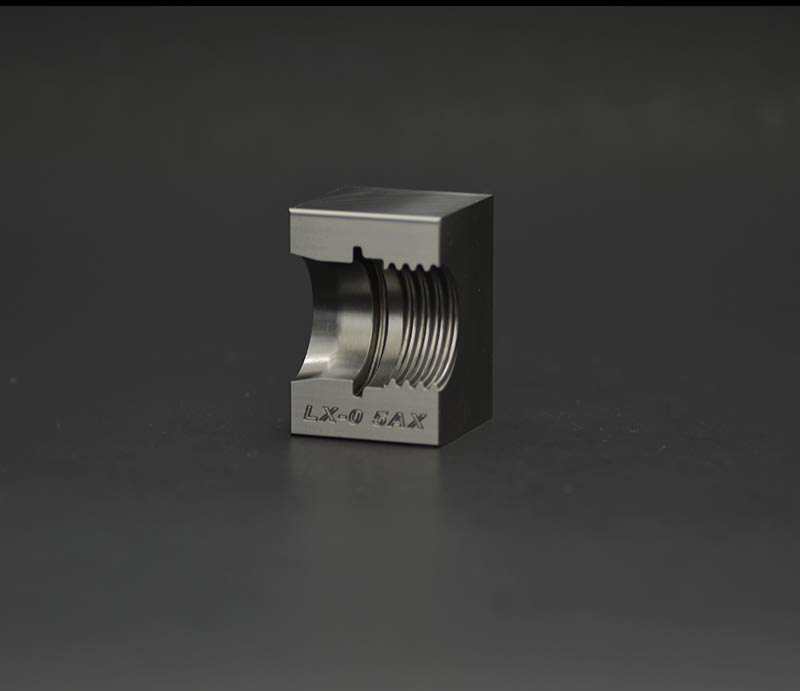

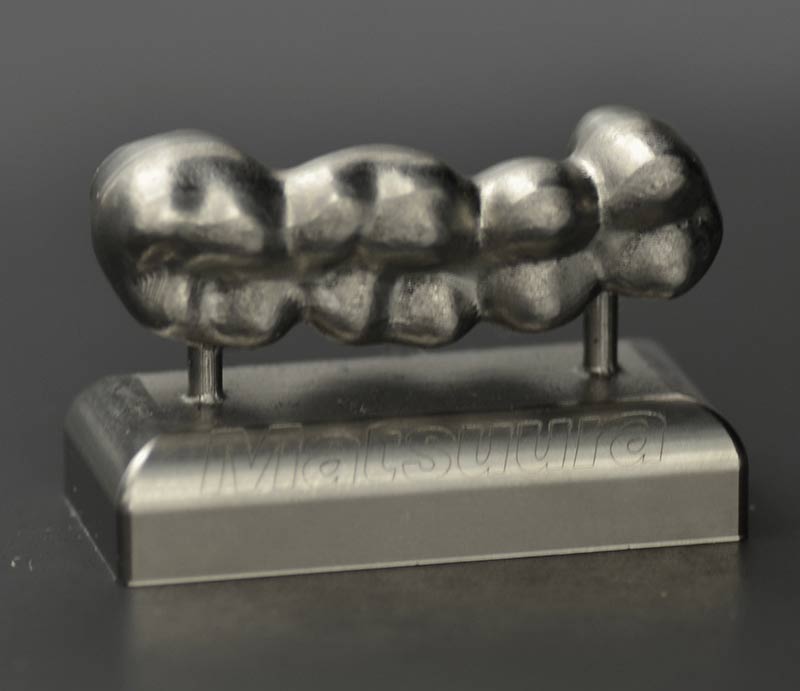

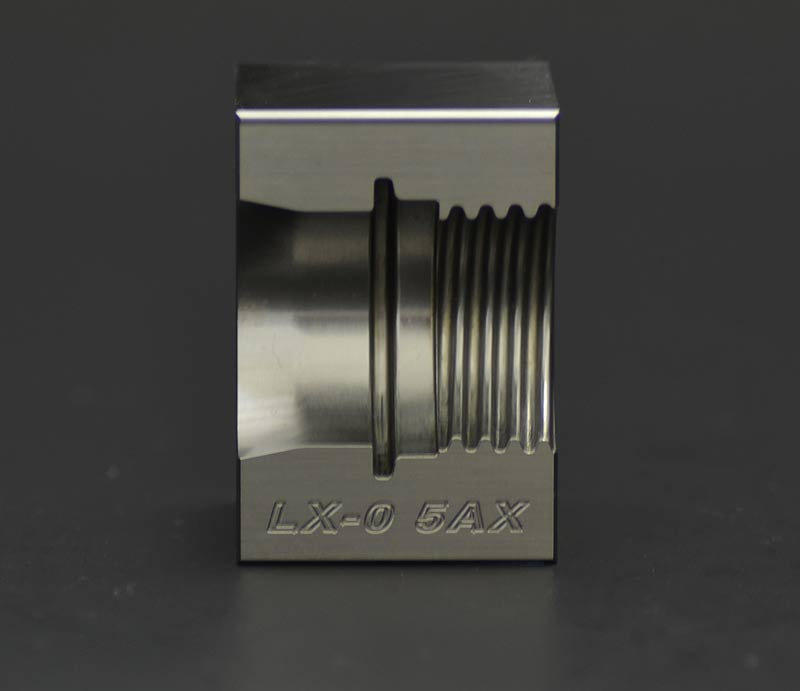

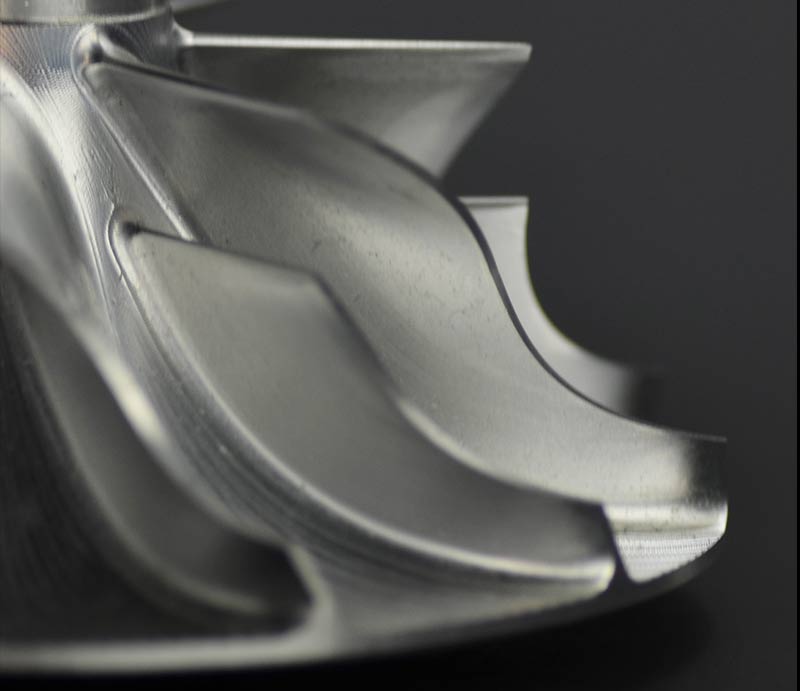

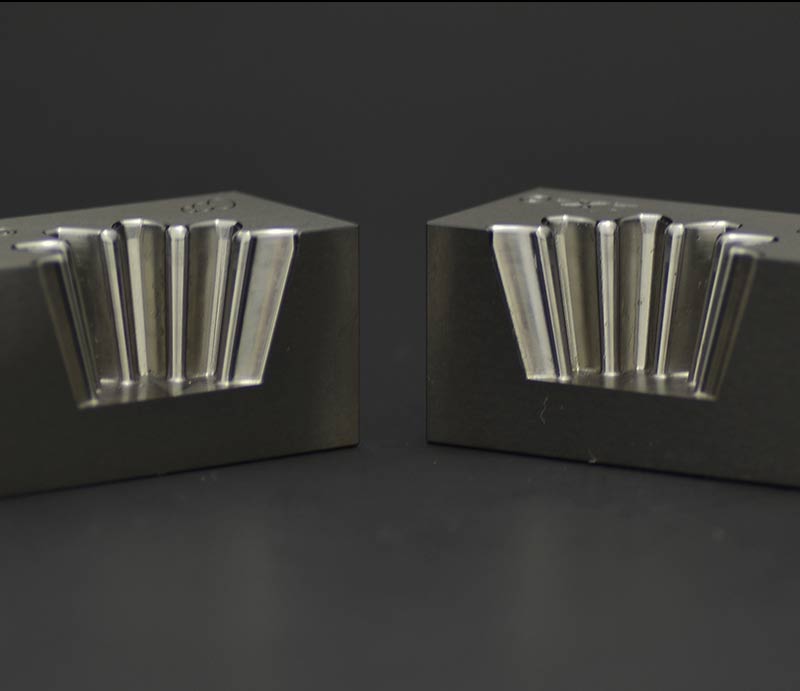

Gallery
