High Quality, Cost-Effective

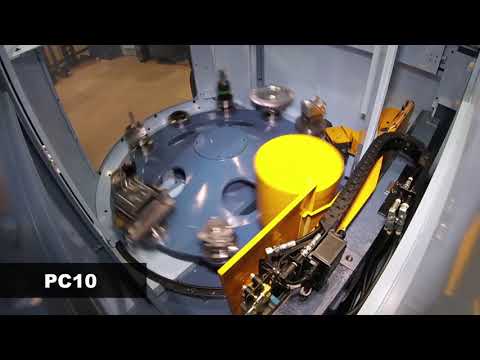

The MX-330 PC10 is only entry level, 5-axis machine that comes standard with a 10-pallet changer. The MX-330, configured with 10 pallets and 90 tools, provides affordable and reliable unmanned 5-axis production, and offers a large work envelope in a compact footprint. The MX-330’s exceptional ergonomics, intuitive controls and full simultaneous 5-axis capability allows machine shops to meet their customers’ increasing demand for shorter lead-times and higher tolerances across multiple faces.
Technical Specs Print Specs
| Industries | Automotive and High Performance, Die / Mold, Medical |
|---|---|
| Max Work Size mm (in) | Ø330×H320 | (Ø12.99×H12.60) | Ø420×H320 | (Ø16.54×H12.60) *with conditions | PC10:Ø330×H300 | (Ø12.99×H11.81) |
| Spindle Speed RPM | 15,000:BT40 Standard | 15,000PowerUp | :BT40 | 20,000:BT40 |
| Travel (x/y/z) mm (in) | 435/465/560 | (17.13/18.31/22.05) |
| Loading Capacity kg (lb) | 80 (176.37) |
| Travel (a/c) ° | -125～+10/360 |
| Rapid Traverse (x/y/z) m/min (in/min) | 40 (1,574.80) |
| Rapid Traverse (a/c) min-1 | 17/33 |
| Tool Taper | CAT #40/BT #40 STD (HSK-A63 OPT) |
| Number of Tools | 30:BT40 Standard | 60:BT40 Standard | 90:BT40 |
| NC System | Matsuura G-Tech 31i |
| Working Surface mm (in) | Ø250 (Ø9.84) Standard | Ø250 (Ø9.84) + | Table through | 6port |
