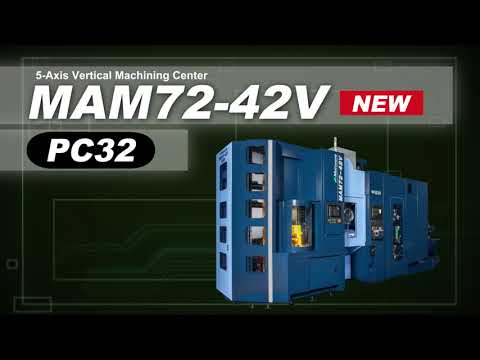

MAM72-42V

5-Axis Vertical Machining Center

HIGH PRECISION, SIMULTANEOUS PRODUCTIVITY

The Matsuura MAM72 Series delivers long periods of unmanned, high precision productivity and provides versatility in the machining of very small to very large components. Enhancing cost-savings and providing better positioning, the MAM72 Series provides pallet and productivity solutions to keep your work center efficiently producing components around the clock. In addition, the newly designed MAM72-42V features an expansion of the maximum workpiece size while maintaining the small footprint of the MAM72-35V.

Technical Specs Print Specs

Industries Aerospace and Defense, Automotive and High Performance
Max Work Size mm (in) Ø420×H315 | (Ø16.53×H12.40)
Spindle Speed RPM 12,000:BT40 Standard | 15,000:BT40 Option | 20,000:BT40 Option
Travel (x/y/z) mm (in) 550/440/580 | (21.65/17.32/22.83)
Loading Capacity kg (lb) 80 (176)
Rapid Traverse (x/y/z) m/min (in/min) 60 (2,362.2)
Number of Tools 130:BT40 Standard | 170/210/250/290/330:BT40 Option | 370/410/450/490/530:BT40 Option
Number of Pallets 32:Tower Pallet System with 1 w/s
NC System Matsuura G-Tech 31i
Working Surface mm (in) Ø130 (Ø5.12)
Travel (b/c) ° -125~+65/360
Rapid Traverse (b/c) min-1 50/100
